The group made a decision to split up the animating element of our final composition.

We hoped to achieve and learn new animating techniques and successfully implement new practices.

We broke all of our sections down into scenes to help compact the workload and spread it out amongst us so that we would be able to share the animation as a group.

(Whether this decision was successful is yet undetermined, as it made it harder to keep consistency with lighting and smoothness, we possibly lost a little bit of time in doing so, as we needed to adapt scenes a few times to ensure continuity, though it did help to spread the work out.)

Our scenes were set at 25 fps and rendered uncompressed with HD resolution 1280x720.

The scenes were broken down as follows:

Scene 1: (Table and Hand) - Hong and Jack
Technique Used: (Light Technique)

Scene 2: (Blueprint Visualisation) - Andrew
Technique Used: Slice Technique

Scene 3: (Walk through House) - Steve and Hong
Technique Used: Biped / Footsteps

Scene 4: (External Pullout) - Hong and steve worked on the final scene
Technique Used: Path Constraint

The Morpher technique was used to test out the fire and create flames, though this isn't actually shown in our final animation.

Cameras, Lighting and Setting Keyframes.

Steve - Compiled animation in Premier Pro and provided original music composition for the soundtrack.

General Tweaks:

- We had to scale down some of our assets a bit to include the biped, as we had an issue of it fitting through the doors of our building.

- A lot of time was taken to ensure all of our Camera moves were effective and realistic pushes.

- Lots of Re-renders in order to ensure consistency of scenes.

Scene 1:

Keyframe allocation.

In order to create a first person view extra attention was taken to create an effective hand movement to turn on the radio.

Positioning the arm/hand and the camera, set key was used to assign the movements and push in camera moves.

This Segment - 6 seconds - 150 frames

An omin light is applied slighly inside of the radio, with 18 multiplier and using the far attenuation with 6.163 start to 8.415 end. Autokey is then used to change the multiplier up and down, so it looks like the light turns on.

Scene 2:

Building Elevation:

For the blueprint scene the idea was to introduce the items and structure of the building into our frame individually as time progresses. To achieve this the Slice Modifier Technique was used.

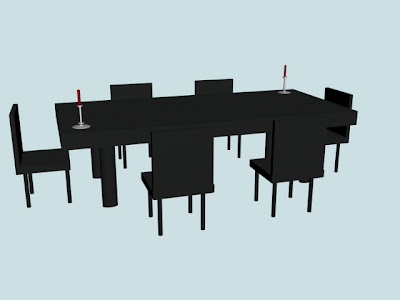

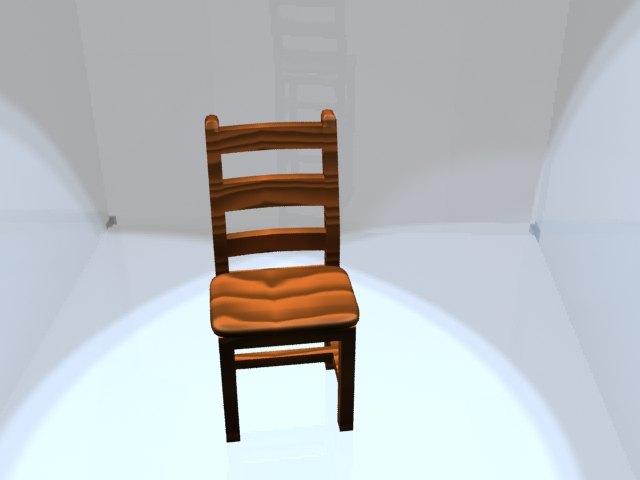

A slice modifier was applied to the walls of the guildhall as well as all the items inside the guildhall. Some of the smaller items were grouped together so that they were easier to animate.

The modifier was set to remove top and the slice plane was moved so that the object selected could not be seen. The timeline was moved to another frame and Auto key turned on, next the slice plane was moved so it was above the selected object and it was no longer being sliced.

This added a key frame at the beginning of the timeline and on the current frame. These could be moved to speed up or slow down the grow animation and change the frame on which the object would start to grow.

This was repeated for all of the objects in the scene and the start and end frame of each was adjusted to create an organic growing effect where the items grew randomly but with some structure, so the items in the scene didn't start growing until the floor was in place.

This segment edited is 41 seconds: 1025 frames

A More Detailed explanantion can be found on andrew's blog: (linked below)

Andrew's Detailed Write Up

Scene 3:

(Hong - Biped Rig)

Footstep Animation: Steve and Hong

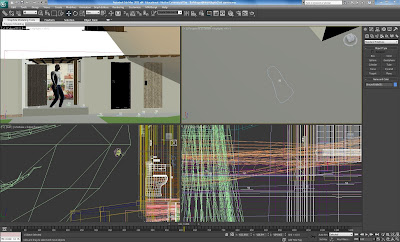

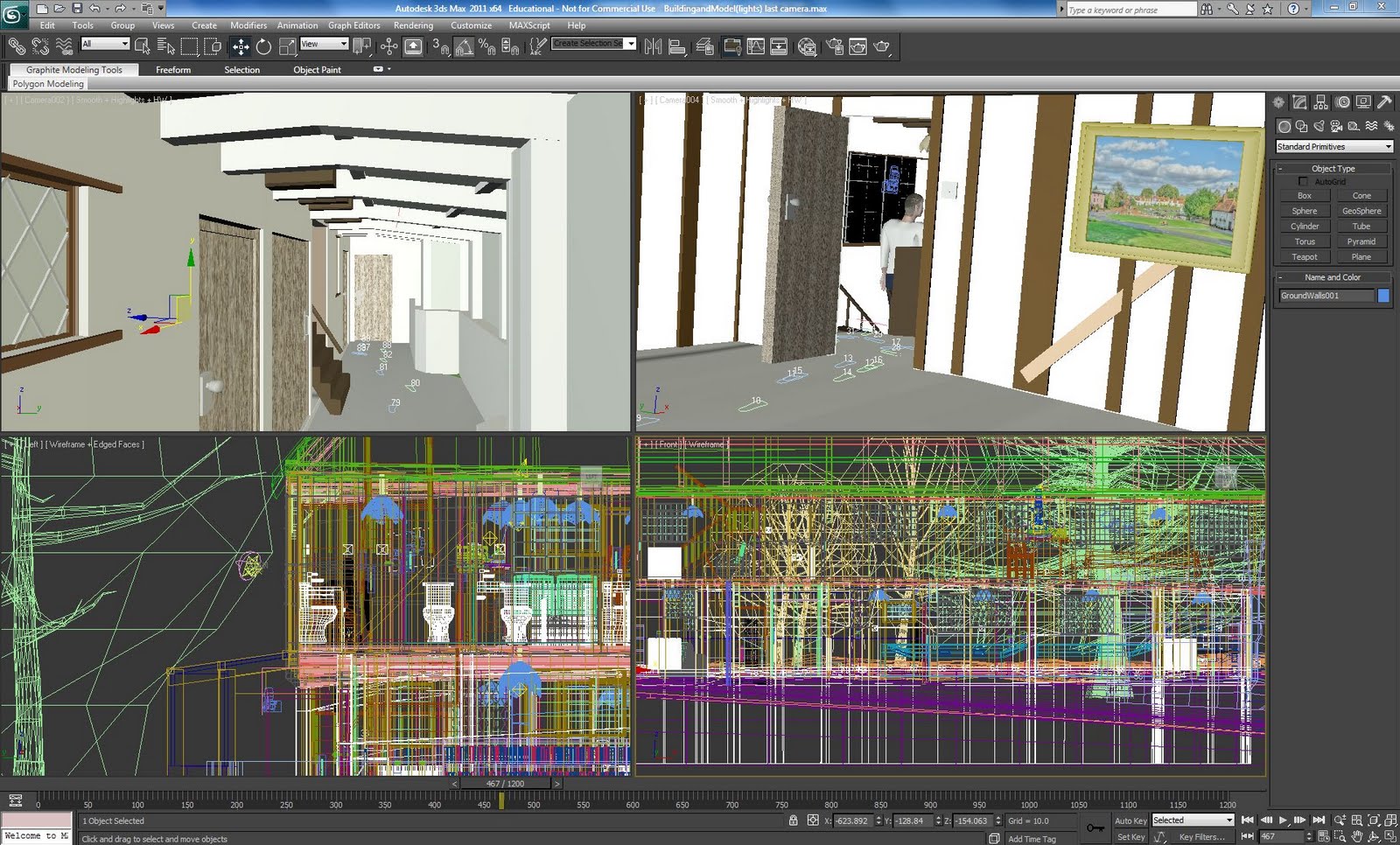

To start this scene the biped model was imported into to the scene, starting on the second floor. Click on the biped, motion is then selected and footstep mode turned on. Create multiple footsteps was used to step out the amount of footsteps needed. The move and rotate tools were used to adjust the footprints. To open the door, the biped fingers were selected and rotated by each joint.
As the biped moves outside, we noticed the background was too grey, so to modify this the daylight system was selected from the modify panel, daylight parameters chosen: mr sun and mr sky with lower horizon height from the mr sky advanced parameters.

Morpher was used to animate the fire movement within the fireplace in the library. We hadn't previously realise that the fire would be in the scene, so when it became apparent in our walkthrough section, we decided to introduce this technique.

In terms of camera movement and selection, basically two styles of camera were used: free camera and target camera. Really we just spent time creating what we felt was the best way to follow our character. In difficult areas, we used cut-aways on another camera to help us within the editing process.

(93 footsteps were used in this sequence)

New Techniques: Biped, Footsteps, Morpher and Daylight System

Scene 4: (External Pullout)

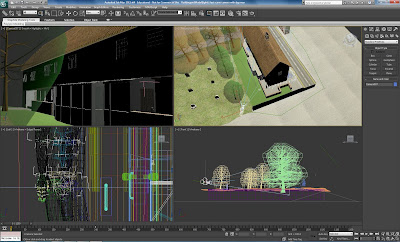

For the final scene the biped carries on walking down the street. The line tool was used to create a path for the camera. A target camera was created and animation selected, constraints was then selected in the animation sub-menu, then path constraint was chosen and the camera added to the line.

(16 footsteps were used in this segment)


Once we had rendered and then seen our mistakes and inconsistencies .... and rendered again, all the scenes were imported into premier pro, within here we added an original composition to our final video and basically compiled 2 versions of our video. A full version which runs at 2mins and incorporates a walkthrough plus a shorter 1minute edit of just our blueprint build scene.

Steve provided the music from a piece of he had written.

Our scenes were rendered and exported as 1280x720 uncompressed.avi

(.f4v and .mov versions were also created)
